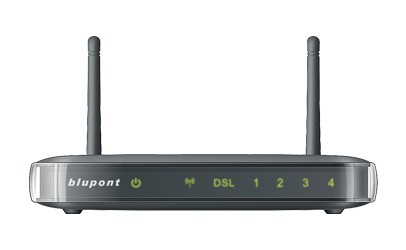

WAL-604WN
无线宽带路由器



产品详细信息

FEATURES

• Supports 802.11n (draft 2.0), 802.11g/b, 802.3/3u.
• 1-port 10/100Mbps WAN port with auto MDI-MDIX.
• 4-port 10/100Mbps LAN switch with auto MDI-MDIX.
• Supports PPPoE, Dynamic IP, and static IP broadband functions.
• Supports UpnP, DDNS, static routing, VPN Pass-through.
• Supports SSID broadcast control and MAC access control list.
• Provides 64/128bit WEP encryption, supports WPA/WPA-PSK, WPA2WPA2-PSK
• authentication.
• Built-in DHCP server with automatic dynamic IP address distribution.
• User interface supports free WEB software updates.
• Supports Intelligent Stream Handling Technology.
• Supports configuration file backup and restore.
• Supports Wi-Fi Protected Setup (WPS).
• 3 Detachable Omni directional antennas.

SPECIFICATION

• PHYSICAL INTERFACES: 1.One 10/100Mbps WAN port;2.4-port 10/100Mbps LAN switch;3.Three 3dBi Detachable Omni directional antennas;4.Reset button
• MANAGEMENTFEATURES: Web based management interface (HTTP)
• SECURITY FEATURES: NAT Firewall with SPI ;Access Control;Web Filter;DMZ Host;IPSec, PPTP and L2TP VPN pass-through;SSID Broadcast disable;MAC address Filtering ;WEP 64/128Bit Encryption; WPA-WPA2-PSK (Pre Shared Key)
• QUALITY-OF-SERVICE(QOS): WPA/WPA2 Enterprise mode (802.1x);Intelligent Stream Handling Technology;Wireless Intelligent Stream Handling Technology
• MISCELLANEOUS: UpnP IGD compliant;WDS (Wireless Distribution System);Virtual Server, Special Application rules;System logging with selectable event levels and types;Syslog server support
• Protocols and Standards: IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX);IEEE802.11b, IEEE802.11g, IEEE802.11n draft v2.0:CSMA/CA, CSMA/CD, TCP/IP, DHCP, PPPoE
• OPERATING FREQUENCY: Fcc: 2412~2462MHz (Ch1~Ch11);ETSI: 2412~2472MHz (Ch1~Ch13)
• TYPICAL RF OUTPUT POWER: 11n Mode: 13dBm;11g Mode: 15dBm;11b Mode: 18dBm
• Operable Environments:Operating: 0 degrees C to 40 degrees C;Storage: 20 degrees C to 60 degrees C;Operating: 10% to 85% Non-condensing;Storage: 5% to 90% Non-condensing
