FEATURES

• Compiles with IEEE 808.11n (Draft 20), IEEE 802,11g, IEEE 802.11b standards
• Provides 32-bit Cardbus interface
• Provides 300Mbps receiving rate and 150Mbps sending rate
• Supports 20MHz/40MHz frequency width
• Auto-detects and changes the network transmission rate
• Provides two work modes: Infrastructure and Ad-Hoc
• Supports Soft AP to establish your wireless LAN networking with lowest cost
• Supports 64/128-bit WEP, WPA, WPA2 encryption methods and 8O2.1x security authentication standard
• Supports WPS (PBC and PIN) encryption method to free you from remembering long passwords
• Supports WMM to make your voice and video more smooth
• Supports Windows XP, 2000 operating systems, etc.

SPECIFICATION

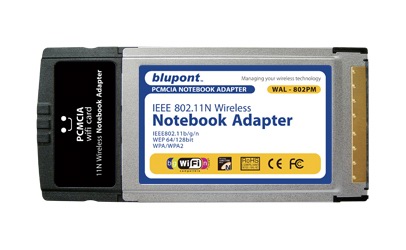

WAL-802PM employs the most advanced wireless networking technology, IEEE802.11n (Draft 2.0). By using the reflection signal, 802.11n's "Multiple In, Multiple Out" (MIMO) technology increases the range and reduces "dead spots" in the wireless coverage area. Unlike ordinary wireless networking of 802.11b/g standards that are confused by wireless reflections, MIMO can actually use these reflections to increase four times transmission range of 802.11g products. Besides, when both ends of the wireless link are 802.11n products, MIMO technology can utilize twice radio band to increase three times transmission speed of ordinary 802.11g standard products, and can comply with backwards 802.11b/802.11g standards.

Soft AP supported by WAL-802PM can help you establish wireless LAN networking with lowest cost. Besides, WPS (PBC and PIN) encryption method can free you from remembering the long passwords. Complete WMM function makes your voice and video more smooth.
